20-40FT Electrical Hydraulic Rotating Spreader

›

‹

  • 20-40FT Electrical Hydraulic Rotating Spreader
  • 20-40FT Electrical Hydraulic Rotating Spreader

›

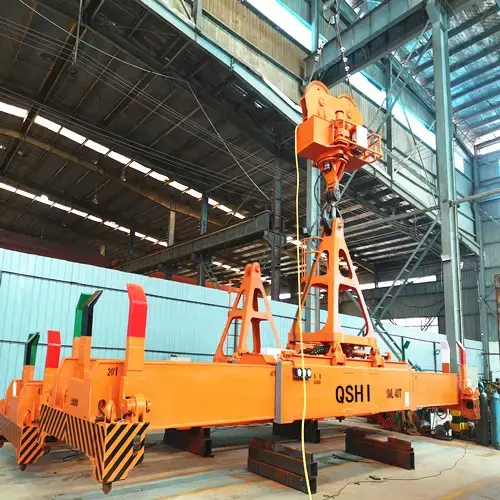

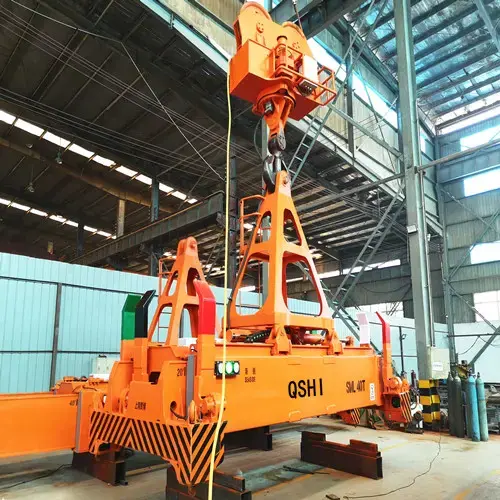

20-40FT Electrical Hydraulic Rotating Spreader
1.Electrical hydraulic single box telescopic rotary container spreader parameters and other technical requirements.
2.The telescopic movement of the spreader is driven by hydraulic pressure to drive the roller chain to perform the telescopic movement. The spreader can perform a rotary motion of 0°~360°, and the rotary motion is completed by electric motor driven the slewing device
GET A QUOTE

 Description




～1s
Resale mode:
Lock and unlock(90°):

ISO floating resale, hydraulic


cylinder drive

 Telescopic mode: Hydraulic drive Telescopic time (20ft~40ft):～30s
 Rotating mode: Electrical motor driven  Swing speed:1.5RPM
 Load eccentricity device: hydraulic cylinder driveGravity point adjustment(±1200mm)～35s
 Guide mechanism: Hydraulic motor drive(6 sets) Protection level:IP55
 Power supply voltage / frequency380V/50HZ Control voltage:48V
 Total power:7.5KW


Electrical hydraulic single box telescopic rotary container spreader parameters and other technical requirements

Product model: GBDXS32-000
 Product drawing: QS20-40-EHTS-40-00
 Using condition: Marine deck crane
 Connection form: the spreader and the host are connected by hook
REM Level:M6Rated load:≤40tons
 Dead weight About 13tons Hanger rated load:4×10 tons
 Allow bias eccentricity±10% Ambient temperature:0°～+40°



20-40FT Electrical Hydraulic Rotating Spreader.png
