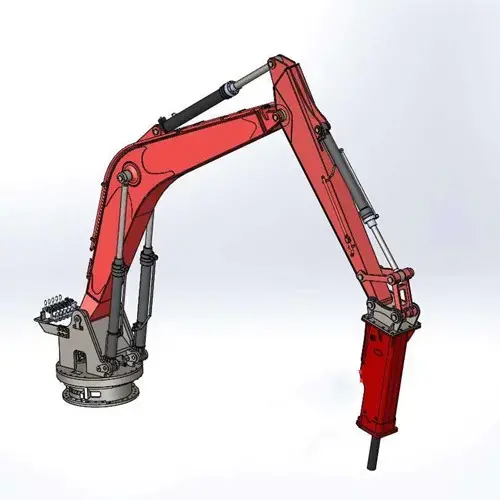

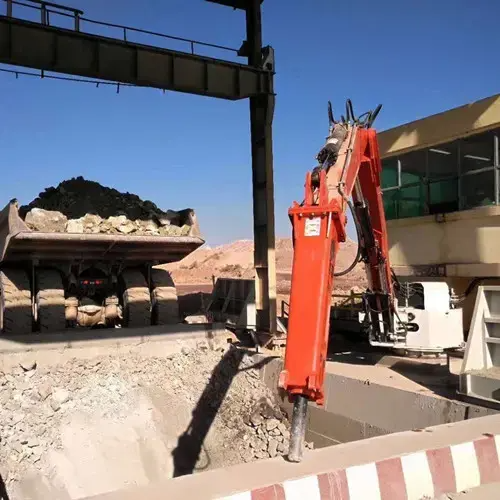

Fixed rock breaker stationar

Working system

The swing seat assembly is a load-bearing member of the main body of the apparatus, and is a box frame structure welded by high-quality steel plates. Strong and strong torsion resistance, good stability and rigidity. Swing in the 360 degree range by a rotary motor.

The boom and the second arm shell are made of high-strength, fine-grained, alloy steel welded main structural beams, welded with stress-relieving structural functional plates, and have outstanding anti-brittle safety performance.

Hydraulic system

The system is a motor-driven, single-pump single-loop constant-voltage variable system, which uses a wireless remote control electronically controlled proportional operation. The main pump is a variable displacement piston pump, a hydraulic proportional multi-way valve, and an electronically controlled proportional control handle ensures the flexible hydraulic action of the multi-way valve. The hydraulic hose is made by the American Eaton brand.

Electrical System

The motor is controlled by a star-delta starter. The electrical system monitors the oil temperature and oil filter alarm of the hydraulic system, and the alarm indication is arranged on the panel of the electric cabinet by LEDs, so that the operator can see at a glance. The entire system is guaranteed to complete the equipment power and control requirements.
