Container Revolver
It allows bulk cargo containers to be tilted and tilted to one side by flipping the central swinging mechanism of the spreader so that bulk cargoes, such as grain, coal, iron ore, etc., can unload from the bulk container to the vessel or other transfer space.
GET A QUOTE

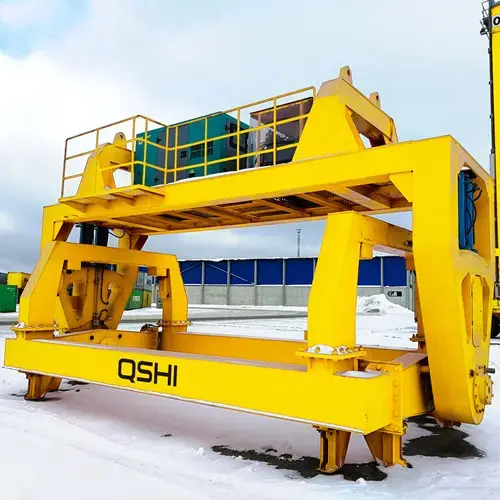

 Description


Introduction：



  1. QSHI1700 series container revolvers are designed for loading and unloading bulk cargo containers. QSHI series of flip spreaders can be hung on ship-to-shore cranes, gantry cranes, RTG, RMG and other lifting equipment.

The QSHI 100 series consists of an external frame attached to the crane hooks. The internal frame is connected to the bulk container by means of a reel, in the same way as a fixed-length spreader connects the containers. The inner frame and the outer frame are connected by a slewing bearing, and the inner frame is driven to rotate 360° by means of a drive motor installed in the outer frame.

  1. The QSHI 1700 series can handle up to 35 tons and 40 tons of safe work load capacity (SWL). It is equipped with a high-performance hydraulic power unit to operate the ISO floating twistlock and flipping drive. It is equipped with fixed and movable container anti-overturn devices.

Technical Parameter：

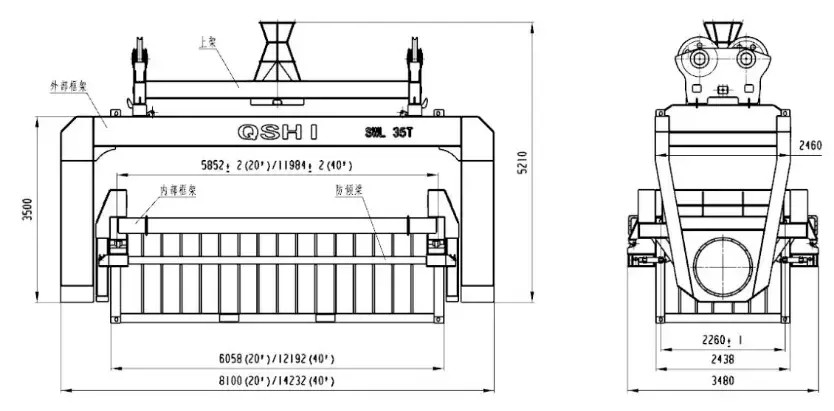

(for reference, subject to specific drawing)

Model17101720
Structure：
- rated lifting weight35T40T
- container size20ft40ft
- lifting point at the top4 x 12.5T
- dead weight8T-8.6T18.75T
Operation time：
- twistlock 90ºAbout 1.5 sec
- anti-overturn device 30ºAbout 7 sec

- flipping 360ºAbout 30 sec
Hydraulic system：
- system working pressure16MPa
- main pressure relief valve pressure17MPa
- pressure relief valve pressure20MPa
- pressure relief valve pressure（twistlock and the anti-overturn device） 5MPa
- bump flow70L/min
- fuel tank capacity225 Liters
-operating oil temperature40ºC
- hydraulic oilISO VG 46(P)
Electrical System：
-power supply unitDiesel Generator Set
-supply voltage/frequencyAC 380V(3P)/50Hz (optional)
- control voltageAC 220V & 24V
- total power18.5kW
protection levelinsulation classIP55 F
Others：
- twistlock drive modeISO floating twistlock, cylinder drive
- revolving drive modeHydraulic motor gear drive
- anti-overturn device driveCylinder drive
- Ambient temperature~20ºC-+50ºC

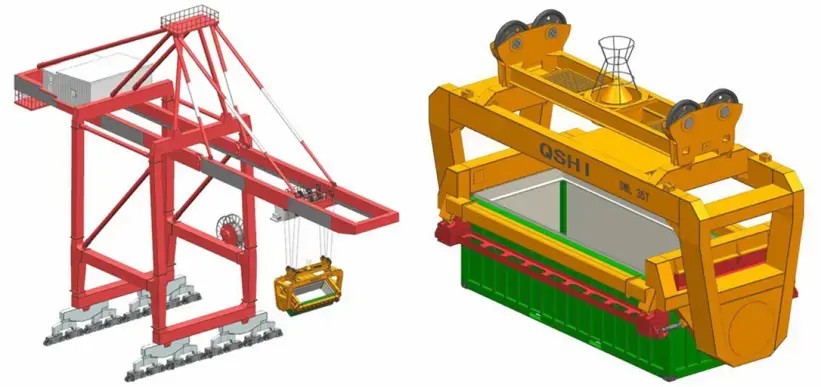

For STS Crane:



For single hook crane:
